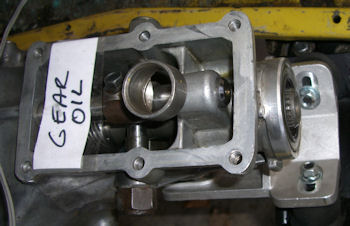

Oops My bad......with the Toyota tranny you can fill it from the shift lever
area. Basically pour in enough gear oil until it comes out the side fill
hole. There's a picture of what I mean here
http://tr6.danielsonfamily.org/60thBirthday/5%20Speed/Images/GearOilReminder
.jpg
Sorry for confusing things!
Bob Danielson
1975 TR6 CF38503U
Running w/ Throttle Body Injection
Toyota 5 Speed & Nissan LSD
http://tr6.danielsonfamily.org
-----Original Message-----
From: triumphs-bounces@autox.team.net
[mailto:triumphs-bounces@autox.team.net] On Behalf Of Randall
Sent: Monday, December 01, 2008 5:00 PM
To: triumphs@autox.team.net
Subject: Re: [TR] TR6 transmission leaks
> They're not airtight what with the way the shifter box is constructed.
> I mean you can fill these things by pouring gear oil in the top when
> the shift lever goes
Huh? I thought we were talking about a TR6 transmission here ... the bottom
of the shift lever is open to the outside world, but there are supposed to
be oil seals where the 3 shafts enter the casting. Granted, they do
frequently leak, but that's mostly because the replacement seals (which are
just standard O-rings) don't fit properly (plus many rebuilders overlook
replacing them). I believe Herman machines spacers to make the O-rings fit
snugly; but I found some packing rings at MMC that accomplished the same
thing.
Not sure that it applies to all combinations, but my TR6 and Stag boxes have
a small plain vent hole near the front of the shift cover. On models with
overdrive, of course, the vent in the OD unit also serves to vent the main
box.
There is even a service note to check that the vent is clear, if the seals
leak.
http://www.triumphsonly.com/pages/technical/1-d-1.htm
Randall
